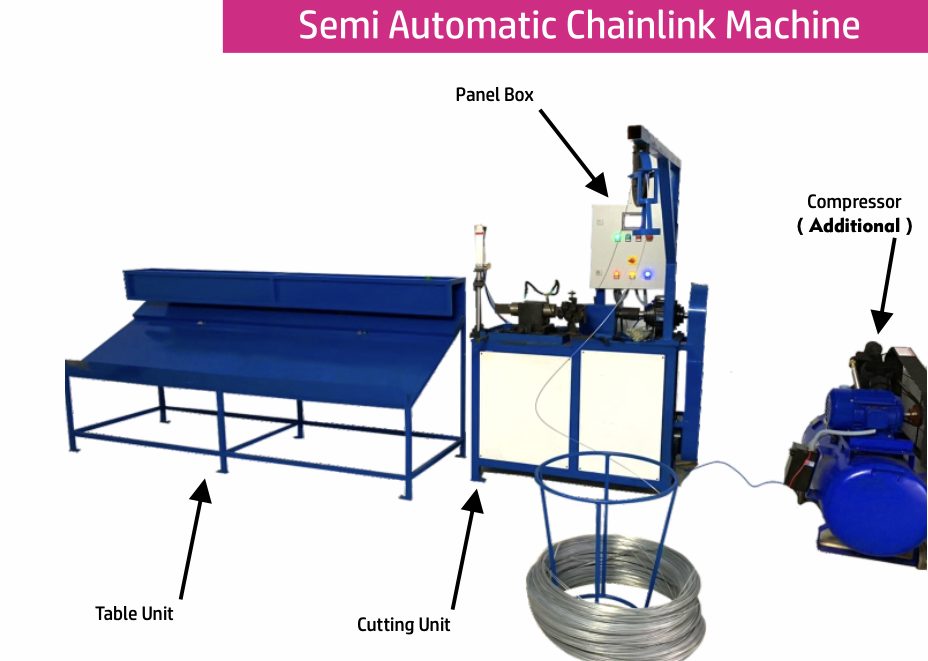

Semi automatic chainlink fencing machine
Our most popular machine for growing workshops: Delta PLC and HMI control with clutch and brake combination, and genuine Janatics pneumatic components. A compressor can be added for an extra cost. Comes with one complementary dye of any size.
₹2,80,000 + 18% GST · transport extra
About this product
Our most popular machine for growing workshops. It uses Delta PLC and touch HMI control with a clutch and brake combination and genuine Janatics pneumatic components, giving 80 to 100 kg per hour of chain link with one operator and at least two weavers.
It makes mesh from 1 to 5 inches in 1.6 to 4 mm GI or PVC coated wire, 2 to 10 ft high, runs on a 5 HP 3 phase motor (2 phase available at extra cost), and comes with one complementary dye of any size. A compressor can be added for an extra cost.
Used for
- New and growing fencing workshops
- Dealers starting their own production
- Contractors making fence for their own projects
Specifications
| Mesh making | 1 inch to 5 inches |
|---|---|
| Wire thickness | 1.6 mm (16 SWG) to 4 mm (8 SWG) |
| Wire type | GI wire, PVC coated wire |
| Chainlink height | 2 feet to 10 feet |
| Production capacity | 80–100 kg/hr, 60–80 sq.m/hr |
| Operators required | 1 operator, 2 weavers (minimum) |
| Dimensions | 4×2×5.5 ft cutting unit, 9.75×3.5×4 ft table unit |
| Motor | 5 HP induction motor (3 phase) |
| Power required | 440V 3 phase, 6 HP minimum |
| Electrical parts | 4" Delta touch HMI, Delta PLC, AEC motor, clutch and brake combination, L&T and Schneider |
| Pneumatic parts | Genuine Janatics pneumatic components |
| Complementary dye | 1 (any size) |
| Delivery time | 15 to 20 working days |
| Note | A compressor can be added for an extra cost; 2-phase supply also available at extra cost |
Payment, warranty and installation
- 50% of the purchase order as advance, balance at the time of delivery, for machinery.
- 100% of the purchase order as advance for dye moulds, the hand twisting machine, machinery spares and tools.
- Transport charges extra.
- Labour charge during installation is free. Travel, food and accommodation for our team need to be provided. Free installation does not apply to the manual machine.
- A service charge applies every time our team visits after installation. Travel, food and accommodation need to be provided.
- Two years warranty for machinery. The hand twisting machine has a 6 months warranty. Voltage damage and physical damage are not covered.
Questions buyers ask
What power supply does it need?
440V 3 phase, 6 HP minimum. A 2 phase option is available at extra cost.
Is a compressor included?
No, it can be added for an extra cost.
How long does delivery take?
15 to 20 working days.
