Fence making machines

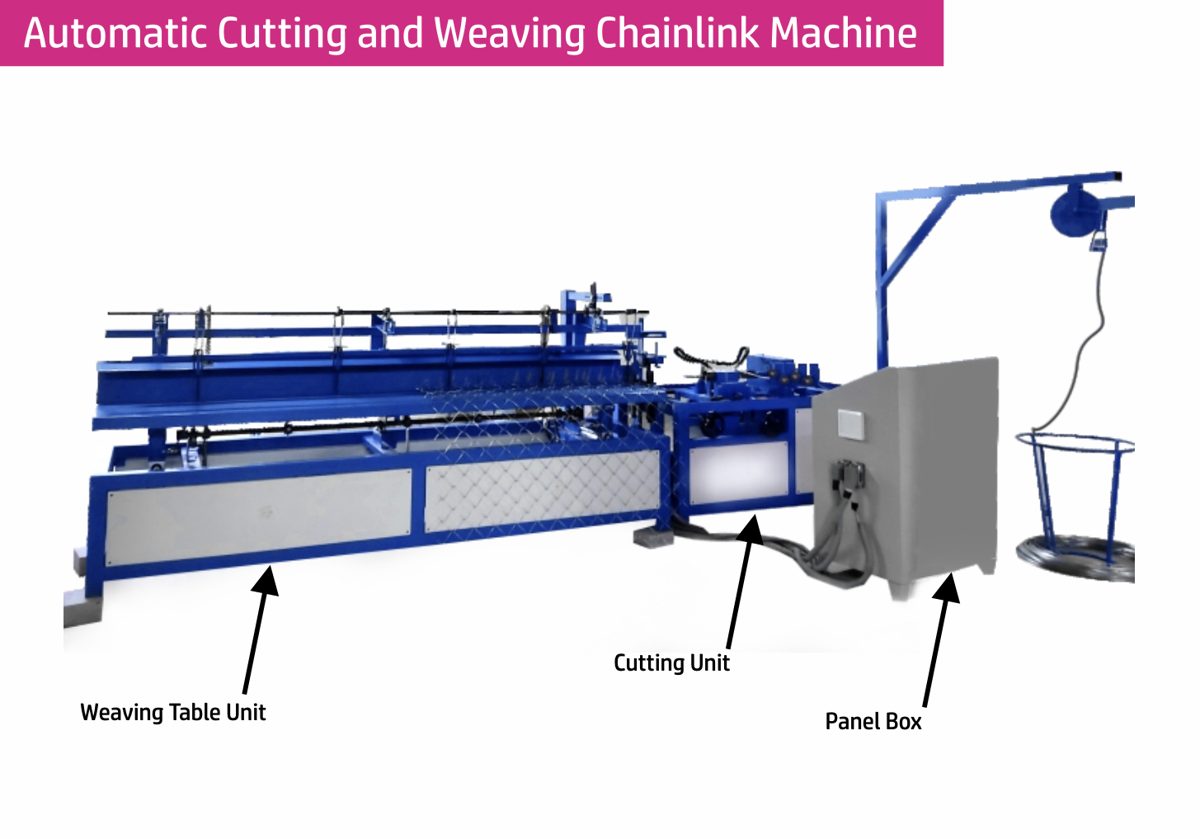

Automatic cutting and weaving chainlink machine
Combines a separate cutting unit and weaving table unit with servo-driven weaving and Delta PLC control for consistent, faster production. Comes with four complementary dyes of any size.
₹6,50,000 + 18% GST · transport extra
About this product
A separate cutting unit and weaving table with servo-driven weaving and Delta PLC control. Automating the weaving gives consistent mesh and faster output with one operator and one helper, instead of a team of weavers.
It makes mesh from 1 to 4.5 inches in 1.6 to 4 mm GI or PVC coated wire, 2 to 10 ft high, at 80 to 100 kg per hour, with a 4 HP servo motor and a 7 inch Delta touch HMI. Four complementary dyes of any size are included.
Used for
- Workshops moving up from manual or semi automatic production
- Units facing labour shortages
- Steady, consistent production for dealers
Specifications
| Mesh making | 1 inch to 4.5 inches |
|---|---|
| Wire thickness | 1.6 mm (16 SWG) to 4 mm (8 SWG) |
| Wire type | GI wire, PVC coated wire |
| Chainlink height | 2 feet to 10 feet |
| Production capacity | 80–100 kg/hr, 60–80 sq.m/hr |
| Operators required | 1 operator, 1 helper |
| Dimensions | 5×2.5×2.5 ft cutting unit, 10×3×4 ft table unit |
| Motor | 4 HP servo motor, 1 HP induction motor, 1 HP brake motor |
| Power required | 440V 3 phase, 7 HP minimum |
| Electrical parts | 7" Delta touch HMI, Delta PLC, AEC motors and gear boxes, L&T and Schneider |
| Complementary dye | 4 (any size) |
| Delivery time | 20 to 25 working days |
Payment, warranty and installation
- 50% of the purchase order as advance, balance at the time of delivery, for machinery.
- 100% of the purchase order as advance for dye moulds, the hand twisting machine, machinery spares and tools.
- Transport charges extra.
- Labour charge during installation is free. Travel, food and accommodation for our team need to be provided. Free installation does not apply to the manual machine.
- A service charge applies every time our team visits after installation. Travel, food and accommodation need to be provided.
- Two years warranty for machinery. The hand twisting machine has a 6 months warranty. Voltage damage and physical damage are not covered.
Questions buyers ask
What power supply does it need?
440V 3 phase, 7 HP minimum.
How is it different from the fully automatic machine?
The fully automatic machine adds a locking unit and a rolling unit for edge finishing and rolling.
How long does delivery take?
20 to 25 working days.
